Cold-Impact-as-per-IEC

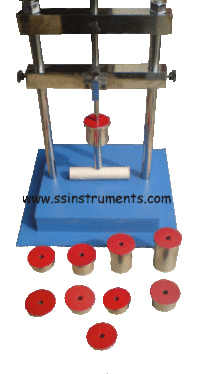

Cold Impact Test as per IEC


Model Number: SSI 506 CIIE

Standard Number: IEC 60811-1-4

Most materials when exposed to extreme cold over a period of time become hard and brittle. Cold Impact test is designed to study the effect of cold temperatures on material under mechanical shock.





Salient Feature

Model : SSI 506 CIIE (Cold Impact Test apparatus as per IEC)
Test Assembly : Made of MS, hard chromed
Weights : 10 different weights from 100 gm to 1500 gm
Central Rod :  Triangular Rod
Hammer Lock :  Adjustable height lock to release the hammer

Delivery: 3 to 4 weeks Packing : One wooden Box


Description

Instrument Principle

The test is an alternative to cold bend test.   Most materials when exposed to extreme cold over a period of time become hard and brittle. This test is designed to study the effect of cold temperatures on material under mechanical shock.

Instrument

The instrument consists of the following


     Testing Anvil

     Cylindrical falling hammer.

     10 weights as per  IEC specs



The sample is cooled in the cold chamber for specified time and whilst still in refrigerator, at the same temperature, struck with the hammer dropped from a height. The sample is then checked for any cracks or scales visible to the unaided eye
