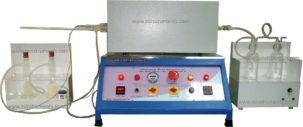

Halogen Acid Gas Emission Tester with Digital Flow Indicator

Halogen Acid Gas Emission Test Apparatus ( Digital Flow meter)


Model Number: SSI 518 HAGD

Standard Number: IEC: 60754 Pt 1 & 2, IS: 10810 Pt 59

Compounds based on halogenated polymers and compounds containing halogenated additives emits harmful Halogen Acid Gas while burning. These gases are corrosive and can prove harmful to property and humans in case of fire.



Salient Features

Model : SSI 518 HAGD (Halogen Acid Gas Emission Tester with Digital Flow Indicator)
Furance :  Tubular Furnace 50 mm Dia
Temperature Range :  Ambient to 1000oC, LC 1oC
Temperature Control :  Using PID Digital Temperature Controller with RAMP facility
Combustion Tube / Boat :  Made of Quartz, capable of withstanding temperatures up to 1200oC
Air Flow  Controlled Air Flow using needle valve
Air Flow indicator :  Digital using air flow sensor, LC 0.01 LPM
Glass Ware :  Air Drying Bottles, Air Collection Bottles with bottle stand and magnetic Stirrer

Delivery : 4 to 6 weeks from Order
Packing : In three wooden boxes

Alternate Model : SSI 518 HAG (Halogen Acid Gas Emission Tester)
: SSI 518HAGH (Halogen Acid Gas Emission Tester HMI Model)



Description

Instrument Principle

Compounds based on halogenated polymers and compounds containing halogenated additives emits harmful Halogen Acid Gas while burning. These gases are corrosive and can prove harmful to property and humans in case of fire. IS 18010 (Pt. 59) & IEC 754-1-94 test determine the amount of Halogen gas other than hydrofluoric acid evolved during the combustion of cables and other similar compounds.



Standard

The instrument is manufactured as per the IEC 60754 – 2 fig 4 or IS 10810 Pt 59.



Instrument

The instrument comprising of

     Tubular Furnace for temp. up to 1000oC +- 10oC.
     PID Digital Temp. Indicating Controller.
     Digital Flow Indicator to monitor Air Flow. The flow can be regulated using with needle valve.
     Quartz tube and Quartz boat for keeping samples – one each.
     Gas Washing Bottles – 2 nos.
     Magnetic stirrer.
     Ph Indicator ( for zero Halogen) (optional)
     Conductivity Indicator (for zero Halogen) (optional)
