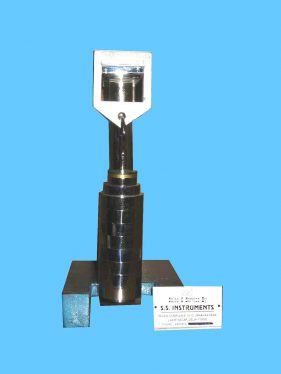

Hot Deformation Test Apparatus


Model Number: SSI 503

Standard Number: IS 10810 Pt 15

Thermoplastics and PVC materials when exposed to continuous heat tend to soften. In this condition when they are subjected to mechanical pressure, they have a tendency to deform at the location of pressure resulting in reduction in thickness.





Salient Feature
Blade :  Made of 0.7 mm Steel Sheet
Stand :  Made of MS duly painted, Sample stand made of MS , hard Chormed
Weights :  Precise weights with slits
Hanger :  To Hang the weights such that the complete force is exerted on the sample
Delivery: 2 to 3 weeks Packing: One Wooden Box, Weights are packed separtly in a Plastic Box.

Description



Thermoplastics and PVC materials when exposed to continuous heat tend to soften. In this condition when they are subjected to mechanical pressure, they have a tendency to deform at the location of pressure resulting in reduction in thickness. The instrument is manufactured for testing the deformation of insulation and sheath of electric cable under pressure and temperature.

The Instrument is especially designed to suit the requirement of IS 10810 (Pt 15).





The instrument consists of


     A rectangular blade with an edge 0.70 +/- 0.01mm wide.

    Smooth Metal Pin (Mandrel) for Hanging weights.


    Weights 100×8, 50×1, 25×1, 20×1, 10×1, 5×1 (all weights in gms)
     Frame for hanging the blade assembly.
