48

Dumb Bell Die


Model Number: SSI 510 DBxx

Standard Number: IS 10810 Pt 7, DIN 53504 S2, ISO 37-2, JIS K6251-6, JIS K7162-5A, ISO 527-2-5A, BS 6746(L), IEC 540(L),

Dumb Bell is the most widely used shape for testing various samples for their physical and other properties.





Salient Features

Die Material :  Die Steel
Overall Length :  75 mm, 50 mm, 110 mm, 150 mm (or as per requirement)
Length of the narrow part :  20 mm (or as per standard)
Width of narrow part :  4 mm (or as per standard)
Sample Ejection :  Automatic

Delivery  : In stock / 1-2 weeks
Packing  : One wooden / plastic box

Description

Dumb Bell is the most widly used shape for testing various samples for their phyical and other properties. The Dumb Bell Shape provides excelent grips on both sides.

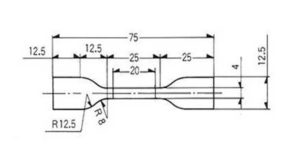

dumb-bell-dies-dimensions
