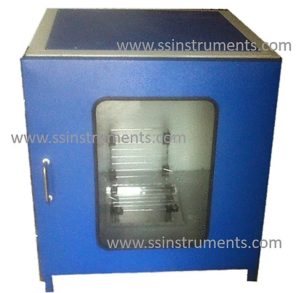

Flammability for Foam

Flammability Test for Upholstery


Model Number: SSI 566 FTFF

Standard Number: EN 1021 Pt 1EN 1021 Pt 1

A standard test rig is constructed from fabric and foam to form a simulated chair with the back at a right angle to the base. This enables the ignition source to be kept in permanent contact with both back and seat throughout the test. Water soak prior to testing is compulsory.





Salient Features

Model : SSI 566 FTFF (Flammability Tester for Fabric and Faom
Construction : Double Walled Chamber, Inner SS, Outer GI powder Coated
Sample Holder : Made of SS to simulate Chain with back at right angle
Burner : A low flame burner  with 35 mm flame height


Description

Instrument Principle

A standard test rig is constructed from fabric and foam to form a simulated chair with the back at a right angle to the base. This enables the ignition source to be kept in permanent contact with both back and seat throughout the test. Water soak prior to testing is compulsory.



Standard

EN 1021 : Part 1
In Part 1 of the test a lighted cigarette is placed in the angle of the test rig and left to smolder along its entire length. After 60 minutes no smoldering or flaming of the fabric should be observed.

EN 1021 : Part 2
Here a butane flame 35 mm in height is used to represent a burning match and is applied for 15 seconds, again in the angle between the test rig base and back. After the flame is removed, no burning of the fabric should occur after 2 minutes have elapsed.
