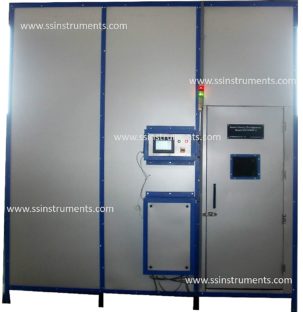

Smoke Desnity Test Appaartus as per IEC with HMI

Smoke Density ( as per IEC) ( HMI Control)


Model Number: SSI 517 SDIE HMI

Standard Number: IS: 10810 (Pt.63)IEC: 61034 - 1

Smoke Density Apparatus is used for measuring & observing the relative amount (Density) of smoke produced by the burning (combustion) or decomposition of Plastic, Cables etc. under controlled conditions.

Salient Features

Model : SSI 517 SDIE HMI (Smoke Density Test Apparatus as per IEC with PLC/HMI control)
Chamber Size : 3 m (3000 mm) length x 3 m (3000 mm) Width x 3 m (3000 mm) Height
Controls : PLC Based controls for Light source, DC Voltage, Fan etc
Dispaly : Touch Screen HMI with Data, Graph and Result Screens.
Chamber Properties : Single Walled (Option for double wall available)
Inner Chamber : Made of 2mm thick GI Sheets, Powder Coated on both sides
Outer Chamber : Made of Aluminum Composite Sheet (Optional)
Sample Stand : As per standard to hold Cables Pieces
Fuel : Pure Alcohol
Light Source : 12 V Bulb
Power Supply : Stabilized Power Supply for 12V DC
Photo Receptor : Highly Sensitive Photo metric Cell to determine small changes in light intensity

Delivery  : 6 to 8 weeks
Packing : One Wooden Box, Approx 12 x 5 x 4 (LBH in feet), weight 2000 kg
Alternate Model : SSI 517 SDIE (Smoke Density Test Apparatus as per IEC)
SSI 517 SDIE SCD (Smoke Density Test Apparatus as per IEC with Scada Software)



Description

Instrument Principle

Smoke Density Apparatus is used for measuring & observing the relative amount (Density) of smoke produced by the burning (combustion) or decomposition of Plastic, Cables etc. under controlled conditions.

The sample is burned under controlled conditions by alcohol fire. A light source and a photo receptor is placed on either side of the chamber, and the percentage of light absorbed is displayed through a linear amplifier digital electronic photometer with 0 to 100% absorbance scale.

As the smoke builds up in the chamber, the light is obstructed, and the absorption of light increases. The photocell detects this change in light intensity and converts the light into electrical signal. The voltage form the photocell is captured by the PLC and converted into absorption value.

 Standard

The instrument is manufactured as per the IEC 61034 and IS: 10810 (Pt.63) specification.


Instrument

     A 2 mm thick walled 3 m x 3 m 3 m Chamber (powder Coated for long life).  (Outer wall optional)
   PLC Based control System for DC Voltage, Light Source, Photo Receptor, Mixing Fan, Exhaust Fan
   Touch Screen HMI for Controls and Display
   Display of Test Progress on Data / Graphical Screen
    Display of Results with all parameters and final Standard / measured absorption.
   The Chamber is constructed on Aluminum Columns and 2 mm thick GI Sheets.
   Door to access the chamber from inside with glass window
   Alcohol Tray as per specifications
   Sample Stand
   Mixing fan inside the chamber along with Sheet shielding as per specifications
   Constant DC power supply to produce 12 V DC for the light source
   Light source 12 V DC to form light spot of 1.5 m diameter on the photo-metric system wall.
   Electronic Photo-metric System to capture and display the % Absorption of light.
   Consist of Photo Cell and Receptor
   Specially developed Software to capture % Absorption from the photo-metric system.
   After the test the results can be displayed in tabular / graph form





Photo Cell Light Source 1.5mt Light Circle inside the chamber
