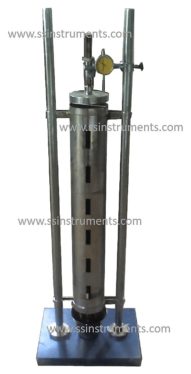

Swedish Chimney

Flammability Test (Swedish Chimney)


Model Number: SSI 505 SCSS

Standard Number: IS: 10810 (Pt.61), SS: 424-14-75, for F-3 Cables

For certain locations it may be important to use a cable which retards flame in case of fire and is self – extinguishing when the source of fire is removed. This test is carried out on finished cables to verify this property.



Salient Features

Model : SSI 505 SCMS (Swedish Chimney with MS Tube – chrome plated)
Test Chamber :  Mild Steel (Hard Chromed)
Fuel :  Pure Alcohol
Fuel Bowl :  Made of Mild Steel (Seamless deisgn)
Temperature Calibration :  By Adjusting the distance between chamber and lid
Temperature Measurment :  Using Digital Temperature Indicator (Hand Held)
Delivery :  2 to 3 Weeks
Packing :  Single Wooden Box
Alternate Model : SSI 505 SCSS (Swedish Chimney with SS Tube)


Description

Instrument Principle

For certain locations it may be important to use a cable which retards flame in case of fire and is self – extinguishing when the source of fire is removed. This test is carried out on finished cables to verify this property.

The sample cable is hanged in the chamber and is burned through the pre-determined amount of alcohol. The quantity of alcohol and time of burning is determined using standard formula depending on the diameter of the test specimen.



Standard

The instrument conforms to SS: 424-14-75 for F-3 Cables and IS: 10810 (Pt 61)



Instrument

The instrument consists of:

  Bullet 1  SS / MS (hard chromed) tube of specified design.

  Bullet 1  MS bowl (seamless)

  Bullet 1  Dial gauge for adjusting the distance between the lid and the burning tube

  Bullet 1  Hand held temperature indicator (for calibrating the instrument)

After the fire extinguish, the cable is inspected for length and intensity of burn.
