Flammability ladder test

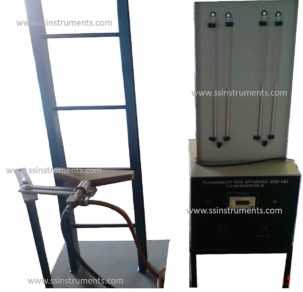

Ladder Flammability Tester


Model Number: SSI 514 FTLT

Standard Number: IEEE 383

This method covers a laboratory Procedure for testing of bunch cables mounted vertically to determine their relative ability to resist flame prorogation. The test is conducted in open air environment only.



Salient Features

Model : SSI 514 FTLT (Flammability Test Apparatus , Ladder Type)
Burner :  Ribbon Type Burner, 300 mm Length
Burner Control :  Using Manometer controlled Gas and Air Flow to the Burner
Temperature Indicator :  Using 1m long ‘K’ Type Thermocouple
Sample Holder :  Ladder Fixed on a stand

Delivery: 4 to 6 Weeks Packing : Two wooden Boxes




Description

Instrument Principle

This method covers a laboratory Procedure for testing of bunch cables mounted vertically to determine their relative ability to resist flame prorogation. The test should demonstrate that the bunched cable doesn’t propagate fire even after its outer covering and insulation have been destroyed in the area of flame impingement.

Standard

The instrument conforms to IEEE 383.

Instrument

The instrument consists of

     Ladder as sample stand

     Burner stand

     Ribbon Type Burner

     Control Panel complete with manometers for LPG and Air

     Temperature Indicator

     One meter long thermocouple

     Rubber pipe for LPG connection.
