58

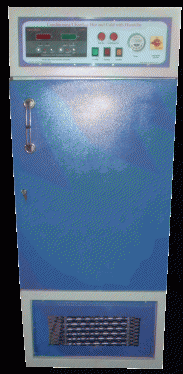

Conditioning Chamber (with Humidity)


Model Number: SSI 507 H

Test Samples are required to condition at regulated temperature and humidity conditions before the actual test. The conditioning helps reduce the variation in results due to external environmental conditions.





Salient Features
Inner Chamber Size :  18 x 18 x 28 (LBH in Inches) (Other Sizes avaibale on request)
Construction :  Inner Chamber is made of Stainless Steel, Outer GI/ MS powder Coated
Temperature Range :  +5oC to +50oC, LC 0.1oC, +/- 2oC
Humidity Range :  30% RH to 90% RH, LC 0.1% RH, +/- 5% RH
Controller :  Microprocessor Based Controller for Temperature and Humidity.
Power requirement : 2 KW Voltage: 220V, 50 HZ
Delivery : 3 to 4 Weeks Packing : One Wooden Box

Description

Test Samples are required to condition at regulated temperature and humidity conditions before the actual test. The conditioning helps reduce the variation in results due to external environmental conditions.




The conditioning chamber is designed to work at temperature from +5 to + 50 Deg C and 30% to 90% humidity. The temperature is controlled using combination of cooling compressor and strategically placed heater around the inner chamber.  Steam generator is used to control the humidity and cooling coils are used to dehumidify the chamber.



The instrument consists of

     SS Inner Chamber

      Standard refrigeration system to maintain low temperature Heaters

      Steam Generator

      Digital Temperature Indicating controller

      Digital Humidity indicating controller

Control Panel
