Flammability as per IEC 60332 Pt 1 and 2 with control panel

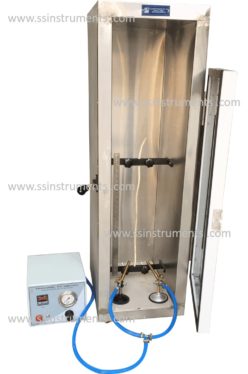

Flammability Apparatus as Per IEC 332 Pt 1 & 2 with Burner Control


Model Number: SSI 504 FTIE3321C

Standard Number: IEC 60332 Pt 1 & 2, IS 10810 Pt 53

For certain locations it may be important to use a cable which retards flame in case of fire and is self – extinguishing when the source of fire is removed. This test is carried out on finished cables to verify this property.

Salient Features

Model : SSI 504 FTIE3321C (Flammability Test as per IEC 60332 Pt 1 & 2, with Burner Control)
Inner Chamber  : 300 x 450 x 1200 (L B H in mm) made of Stainless Steel
Outer Chamber : GI / MS Sheet, Powder Coated
Sample Hanging : Clamps provided to hold the Cable Samples
Fuel Pressure : Fuel Pressure to the burner can be controlled and mointored
Timer : Digital Timer to set test time and shut off burners after the test time is over.
Fuel Supply : The Fuel is supplied through a Fire resistant Solenoid valve
Burner : Bunsen Burner, Adjusted to 45 deg angle
Measurement : Manual using Stainless Steel provided in the chamber
Delivery : 2 to 3 weeks
Packing : Wooden Box, Approx 50 x 60 x 135 (L B H in cm), Weight 50 kg
Alternate SSI 504 FTIE3321 (Flammability Test Apparatus as per IEC 60332 Pt 1 & 2)

Description

Instrument Principle

For certain locations it may be important to use a cable which retards flame in case of fire and is self – extinguishing when the source of fire is removed. This test is carried out on finished cables to verify this property. The sample cable is hanged in the chamber and is burned through the burner provided in the instrument for the prescribed time. After the flame is removed, the period of burning of cable is noted by a stop watch. After the cable ceases to burn, the effected area is measured through the scales provided in the chamber.

Standard

The instrument conforms to IEC: 60332 Pt 1 & 2 and IS: 10810 Pt 53

Instrument

The instrument consists of

.

      Inner chamber of 1200 x 300 x 450 mm made of Stainless Steel

      The Chamber is constructed form GI/MS Sheet powder coated

      45 Deg burners ( 2 Nos, as per specification)

      Industrial gas regulator (For India Only)

      Stainless Steel Scale for burn length measurement. (Stop watch to be arranged by the customer)

      Door with toughed glass with gaps on top and bottom for air flow.

      Fuel Pressure monitor and control

      Timer to set the test time and shut of burner after test time is over.

      Fire resistant Solenoid Valve to cut of fuel supply yo burner.

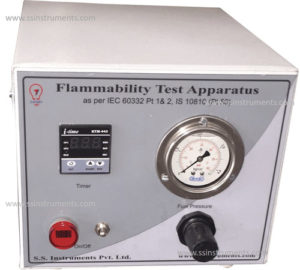

  Burner Control Panel
45 Deg Burner Burner Control Panel
