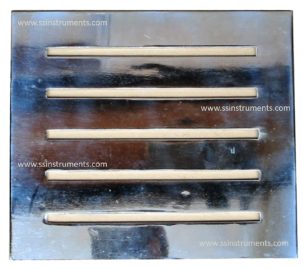

Sample Die for Limiting Oxygen Index


Model Number: SSI 515.1

Standard Number: ASTM 2863IS 10810

Correct and accurate sample is necessary for result accuracy and repeatability. The Sample Die is designed to produce equal sized samples for testing Limiting oxygen Index Test Apparatus.



Salient Feature
Die Material :  MS hard chormed
Size of Sample :  3 x 6 x 115 (LBH in mm)
No Of Sample :  5 samples can be made at one time.
Delivery : Ex Stock / 1-2 weeks Packing : Card Board Box





Description



The Die is specifically designed to make samples for Limiting Oxygen Index Test Apparatus. The Die is manufactured in three pieces. The upper and lower plates are support plates. The Middle plate has cut out for the samples as per the standard requirement.



The Die with sample is kept in Hydraulic press (SSI 509) for formation of smooth and accurate samples to be tested in LOI.
