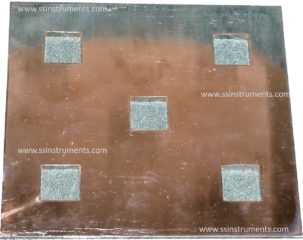

Sample Die for Smoke Density

Sample die for Smoke Density

Model Number: SSI 516.1

Standard Number: ASTM D 2843

Correct and accurate sample is necessary for result accuracy and repeatability. The Sample Die is designed to produce equal sized samples for testing Smoke Density for any sample.

Salient Feature
Die Material  MS hard chromed
Size of Sample :  25 x 25 x 4 mm (LBH in mm)
No Of Sample :  5 samples can be made at one time.
Delivery  : Ex Stock / 1-2 weeks
Packing  : Card Board Box




The Die is specifically designed to make samples for Smoke Density Test Apparatus. The Die is manufactured in three pieces. The upper and lower plates are support plates. The Middle plate has cut out for the samples as per the standard requirement.


The Die with sample is kept in Hydraulic press for formation of smooth and accurate samples to be tested in Smoke Density .
