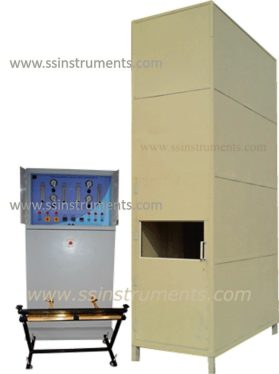

Flammability Test for Bunch Cables

Model Number: SSI 513 FTBC

Standard Number: IEC 60332 Pt 3, IS 10810 Pt 62, BS EN 60332-3-10

Instrument Principle

The propagation of flame along a bunch of cables depends on a number of feature, such as:

• The volume of non-metallic material exposed to the fire and to any flame which may be produced by the combustion of the cables;
• The geometrical configuration of the cables and their relationship to any enclosure;
• The temperature at which it is possible to ignite gases emitted from the cables;
• The quality of combustible gas released from the cables for a given temperature rise;
• The volume of air passing through the cable installation and
• The construction of the cable, for example armored or unarmored.

All of the foregoing assume that the cables are able to be ignited when involved in an external fire.

The fire test should demonstrate that the bunched cables do not propagate fire even if its outer covering and insulation have been destroyed in the area of flame impingement.

This Test instrument is designed to covers a laboratory Procedure for testing of bunch cables mounted vertically to determine their relative ability to resist flame prorogation. The objective of the fire test is be to approximately simulate the installation condition and provide consistent results.

Standard

The instrument conforms to IEC 332 Pt 3 , BS EB 60332-3-10 and IS 10810 Pt 62.

Instrument

The instrument consists of

     A test chamber of inside dimensions width 1000 mm, depth of 2000 mm and height of 4000 mm.

      The test chamber is made of 1.6 mm thick GI sheet (no rust).

      An aperture of 800 x 400 mm situated 150 mm from the front wall of the test chamber.

      An outlet of 300 x 1000 mm at the rear edge of the top of the chamber

      Ladder for fixing sample during the test (800 mm wide and 500 mm wide)

      Two ribbon type burner as per specifications. (optional one burner model is also available)

      Control panels for controlling the LPG / air flow and pressure to the burners.

      Both burners can be controlled independently.

      Air Control System (Air Blower) & air velocity measurement by digital anemometer.

      Environmental Panel to monitor surrounding air velocity and chamber temperature.

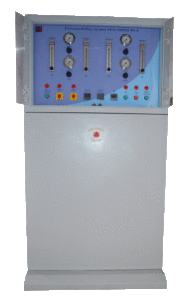

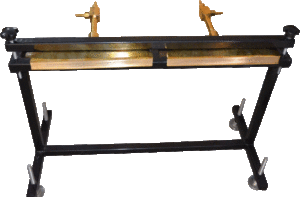

Ribbon Burner (2 Nos) with Stand	2 Burner Control Panel	Sample Ladder 800 and 500 width

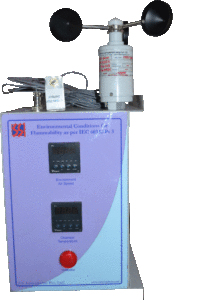

Environmental Panel	Opening at Top of Chamber	Opening at the bottom for Air Inlet
