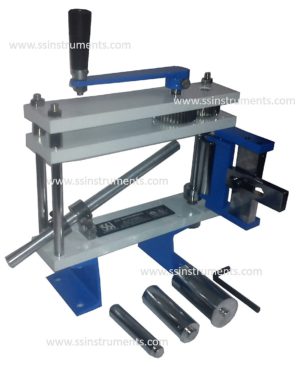

Cold Bend Test Apparatus as per IEC

Cold Bend as per IEC

Model Number: SSI 506 CBIE

Standard Number: IEC 60811-1-4

Cracks and deformation occur when the material is bend or wound under cold conditions. The apparatus is deigned to wound the cable samples on standardized mandrels under cold conditions.



Salient Features

Model : SSI 506 CBIE (Cold Bend Test Apparatus as per IEC Standard.
Stand Construction :  Made of MS, hard chromed
Mandrels :  4 Mandrels of 5,10,20,30 mm Dia.
Sample Rotation :  Using geared pulley to wound sample around the mandrel


Instrument Principle

The Cable is wound on the mandrel and frozen over a pre-determined time. The sample is then taken out and checked for visible cracks, discoloration or any other deformity due to cold temperature. The test is applicable for specimen of diameter up to and including 12.5 mm, above which the test is considered impracticable.


The Instruments conisit of

    Metal Mandrel.

    Metal Frame for mandrel attachment
