Smoke Density Test Apparatus as per IEC

Smoke Density (as per IEC 61034)


Model Number: SSI 517 SDIE

Standard Number: IS: 10810 (Pt.63), IEC: 61034 - 1

Smoke Density Apparatus is used for measuring & observing the relative amount (Density) of smoke produced by the burning (combustion) or decomposition of Plastic, Cables etc. under controlled conditions.



: 6 to 8 weeks

Salient Features

Model : SSI 517 SDIE (Smoke Density Test Apparatus as per IEC 61034)
Chamber Size : 3m (3000mm) lenght x 3m (3000mm) Width x 3m (3000mm) Height
Chamber Properties : Single Walled, Made of 2mm thick GI Sheets, Powder Coated on both sides
Sample Stand : As per standard to hold Cables Pieces
Fuel : Pure Alcohol
Light Source : 12 V Bulb
Power Supply : Stabilized Power Supply for 12V DC
Photo Recepetor : Highly Sensitive Photo metric Cell to determine even small changes in light intensity

Delivery  : 6 to 8 weeks
Packing : One Wooden Box, Approx 12 x 5 x 4 (LBH in feet), weight 2000 kg
Alternate Model : SSI 517 SDIE HMI (Smoke Density Test Apparatus as per IEC with PLC/HMI control)
: SSI 517 SDIE SCD (Smoke Density Test Apparatus as per IEC with Scada Software)

Description

Instrument Principle

Smoke Density Apparatus is used for measuring & observing the relative amount (Density) of smoke produced by the burning (combustion) or decomposition of Plastic, Cables etc. under controlled conditions.



The sample is burned under controlled conditions by alcohol fire. A light source and a photo receptor is placed on either side of the chamber, and the percentage of light absorbed is displayed through a linear amplifier digital electronic photometer with 0 to 100% absorbance scale.

 Standard

The instrument is manufactured as per the IEC 61034 and IS: 10810 (Pt.63) specification.

Instrument

The instrument is manufactured as per the IEC specification and also confirms various other international standards. The instrument comprising of




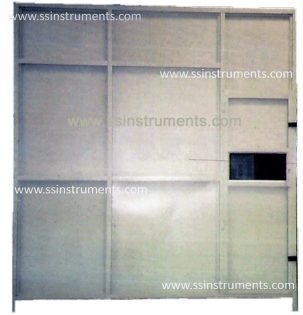

    A Single walled 3m x 3m 3 m Chamber (powder Coated for long life).
   The Chamber is constructed on Aluminum Columns and 2mm thick GI Sheets. This ensure no rust formation on the chamber
   Door to access the chamber from inside with glass window
   Alcohol Tray as per specifications
   Sample Stand
   Mixing fan inside the chamber along with Sheet shielding as per specifications
   Constant DC power supply to produce 12 V DC for the light source
   Light source 12 V DC to form light spot of 1.5m dia on the photometric system wall.
   Electronic Photometric System to capture and display the % Transmission of light.
   Consist of Photo Cell and Receptor
   A to D Card and interface for the computer
   New laptop with Original windows Software and one inkjet printer.
   Specially developed Software to capture % transmission from the photometric system.
   After the test the results can be displayed in tabular / graph form
   Double walled Chamber for strength (optional)


Photo Receptor Photo Cell Power Supply

Interface Exhaust Fax Smoke Mixing Fan
