Flammability as per ASTM

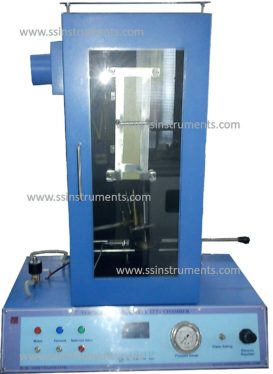

Flammability as per ASTM (Vertical Burning)


Model Number: SSI 590 FTT ASTM

Standard Number: ASTM 6413, IS : 11871

The ASTM test serves as a preliminary indication of Textile /  plastics material acceptability for use as part of a device or appliance with respect to its flammability. The material is kept vertical to the flame for the test.


Salient Features

Model SSI 590 FTT ASTM (Flammability Tester for Textile as per ASTM standard)
Chamber :  13.75 x 24 x 31 (LBH in Inches)
Chamber Construction :   Single Walled made of 16 gauge Stainless Steel, with Clear Glass window Door
Burner :  Specially Designed Burner to produce 38 mm vertical flame (Adjustable)
Burner Control :  Through Gas Flow and pressure regulator and Flame Regualtor.
Timers :  Three, for Flame Burning, Unaided Burning, Glow Time

Delivery : 4 to 6 Weeks Packing : One Wooden Box

Description

Instrument Principle

The ASTM test serves as a preliminary indication of Textile /  plastics material acceptability for use as part of a device or appliance with respect to its flammability.

This test uses specimen which is held at one end in the vertical position (in a U shaped sample holder ) . A burner flame is applied to the free end of the specimen for specific  time.

The Following Parameters are observed

  • Duration of flaming combustion after the burner flame application.
  • Duration of after burner flame burning
  • Duration of glowing combustion after burner flame application.

Standard

The Instrument conforms to ASTM 6413 and IS 11871

Instrument

The Instrument consist of the following

     A Single Walled Chamber for sample burning with front glass door

     A Vertical Burner with precise gas control system including gas regulator

     Burner Moving system to adjust the burner position

     Sample Holding System

     Digital Timer for flame application with burner exhaust at the end of desired time

     Digital timer for flame observation after flame is removed (Unaided Burning).

     Digital timer for Glow observation.

     Exhaust Fan (Optional)
