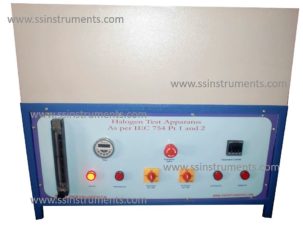

Halogen Acid Gas Emission Tester

Halogen Acid Gas Emission Test Apparatus


Model Number: SSI 518 HAG

Standard Number: IEC 754 Pt 1 & 2IS 10810 Pt 59

Compounds based on halogenated polymers and compounds containing halogenated additives emits harmful Halogen Acid Gas while burning. These gases are corrosive and can prove harmful to property and humans in case of fire.



Salient Features

Model : SSI 518 HAG (Halogen Acid Gas Emission Test Apparatus)
Furnace :  Tubular Furnace 50 mm Dia
Temperature Range :  Ambient to 1000oC, LC 1oC
Temperature Control :  Using PID Digital Temperature Controller with RAMP facility
Combustion Tube / Boat :  Made of Quartz, capable of withstanding temperatures up to 1200oC
Air Flow :  Controlled Air Flow using Rotometer
Glass Ware :  Air Drying Bottles, Air Collection Bottles with bottle stand and magnetic Stirrer

Delivery : 4 to 6 weeks
Packing : Three wooden Boxes

Alternate Model : SSI 518 HAGD (Halogen Acid Gas Emission Tester with Digital Flow Indicator)

Description

Instrument Principle

Compounds based on halogenated polymers and compounds containing halogenated additives emits harmful Halogen Acid Gas while burning. These gases are corrosive and can prove harmful to property and humans in case of fire. IS 18010 (Pt. 59) & IEC 754-1-94 test determine the amount of Halogen gas other than hydrofluoric acid evolved during the combustion of cables and other similar compounds.



Standard

The instrument is manufactured as per the IS specification and confirm to test app., method 754 – 2 fig 4.



Instrument

The instrument comprising of



     Tubular Furnace for temp. up to 1000oC +- 10oC.
     PID Digital Temp. Indicating Controller.
     Manometer with built-in air source.
     Quartz tube and Quartz boat for keeping samples – one each.
     Gas Washing Bottles – 2 nos.
     Magnetic stirrer.
     Ph Indicator ( for zero Halogen) (optional)
     Conductivity Indicator (for zero Halogen) (optional)









Quartz Tube

Carrier with Air Connection Quartz Boat
